SOPO offers a full range of CWDM Mux-Demux and Optical Add Drop Multiplexer (OADM) units to suit all kinds of applications and network solutions. Some most common ones are Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fiber Channel, FTTx, and CATV.

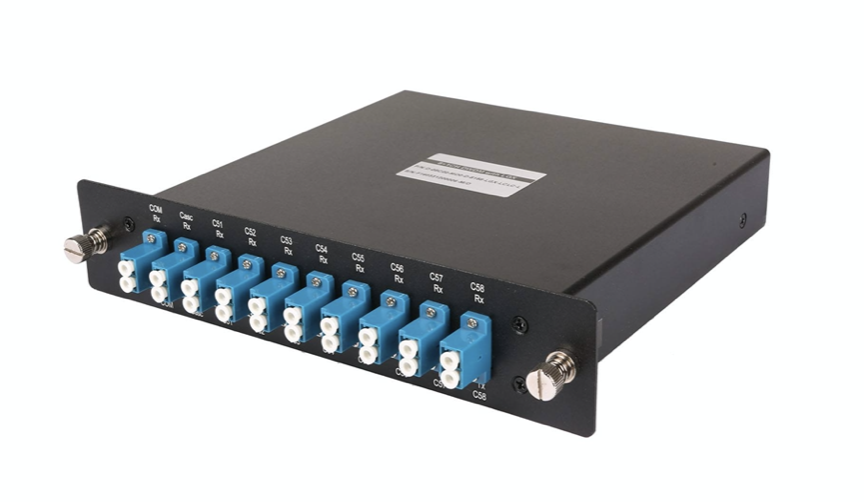

Customized 4,8,16,18-channel CWDM OADM Module
Features:
Low insertion loss
Wide pass band
High channel isolation
High stability and reliability
Epoxy free on optical path
Applications:
Line Monitoring
WDM network
Telecommunication
Cellular Application
Fiber optical amplifier
Access Network
|

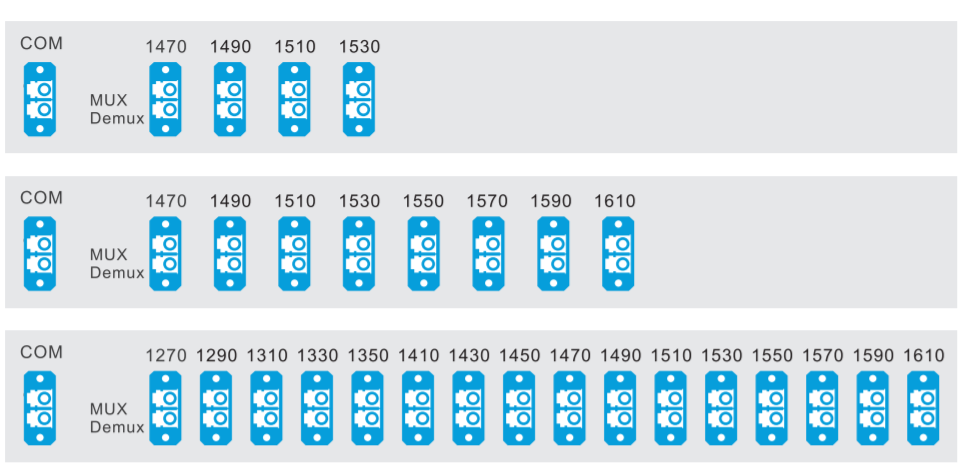

Parameter |
4 channel |
8 channel |
16 channel |
||||
|
Mux |
Demux |
Mux |
Demux |
Mux |
Demux |
||
|
Channel Wavelength(nm) |
1270-1610/1271-1611 |
||||||
|
Channel Spacing(nm) |
20 |
||||||
|
Channel Passband(@-0.5dB bandwidth)(nm) |
±7. 5/±6. 5 |
||||||
|
Insertion Loss(dB) |
"5 |
W2.5 |
W3.5 |
||||
|
Channel Uniformity(dB) |
<0. 6 |
<1.0 |
"5 |
||||
|
Channel Ripple(dB) |
<0. 3 |
||||||
|
Isolation(dB) |
Adjacent |
N/A |
>30 |
N/A |
>30 |
N/A |
>30 |
|
Non-adjacent |
N/A |
>40 |
N/A |
>40 |
N/A |
>40 |
|
|
Insertion Loss Temperature Sensitivity(dB/°C) |
<0.005 |
||||||
|
Wavelength Temperature Shifting(nm/°C) |
<0.002 |
||||||
|
Polarization Dependent Loss(dB) |
<0.1 |
||||||
|
Polarization Mode Dispersion(ps) |
<0.1 |
||||||
|
Directivity(dB) |
>50 |
||||||
|
Return Loss(dB) |
>45 |
||||||
|
Maximum Power Handling(mW) |
300 |
||||||
|
Operating Temperature(°C) |
-5~+75 |
||||||
|
Storage Temperature(°C) |
-40-+85 |
||||||
|
Package Dimension(mm) |
L 100 x W80 x H10 |
L141x W115 x H18 L120 x W80 x H18 |
|||||
Ordering Information
|
CWDM |
□ |
□□ |
□ |
□□ |
□ |
□ |
□ |
|
|
Channel Spacing |
Number of Channels |
Configuration |
1st Channel |
Fiber Type |
Fiber length |
Connector |
|
C=CWDM Grid |
04=4 Channel 08=8 Channel 16=16 Channel 18=18 Channel N=N Channel |
M=Mux D=Demux O=OADM |
27=1270nm ...... 47=1470nm 49=1490nm ...... 61=1610nm SS=special |
1=Bare Fiber 2=900um Loose tube 3=2mm Cable 4=3mm Cable |
1=1m 2=2m 3=special |
0=None 1=FC/APC 2=FOPC 3=SC/APC 4=SC/PC 5=ST 6=LC |
