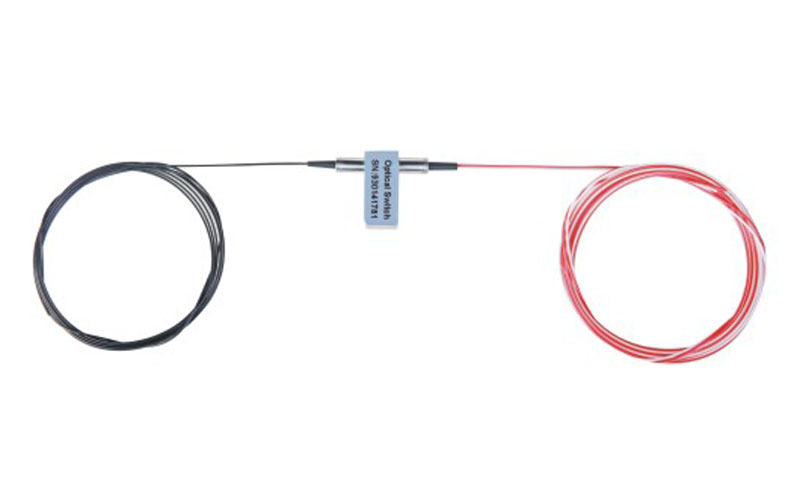

2×2B Pass Optical Switch LC / FC 1260 - 1650 nm
Features:
Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching
Applications:
R&D in Laboratory
System Monitoring
OADM
MAN (Metropolitan Area Network)
Specifications:
|
Parameters |
Unit |
|
|
|
Wavelength Range |
nm |
1260 ~ 1650 |
|
|
Test Wavelength |
nm |
1310 / 1550 |
|
|
Insertion Loss 1, 2 |
dB |
Type:0.6 |
Max:0.8 |
|
Return Loss 1, 2 |
dB |
SM ≥ 50 |
|
|
Crosstalk 1 |
dB |
SM ≥ 55 |
|
|
PDL |
dB |
≤0.05 |
|
|
WDL |
dB |
≤0.25 |
|
|
Repeatability |
dB |
≤±0.02 |
|
|
Operating Voltage |
V |
3.0 or 5.0 |
|
|
Durability |
Cycles |
≥ 10 Million |
|
|
Switching Time |
ms |
≤8 |
|
|
Optical Power |
mW |
≤500 |
|
|
Operating Temperature |
℃ |
-20 ~ +70 |
|
|
Storage Temperature |
℃ |
-40 ~ +85 |
|
|
Relative Humidity |
% |
5 ~ 95 |
|
|
Weight |
g |
14 |
|
|
Dimension |
mm |
(L)27.0×(W)12.0×(H)8.2 ±0.2 or Customer design |
|
|
Note: 1 Within operating temperature and SOP. |
|||

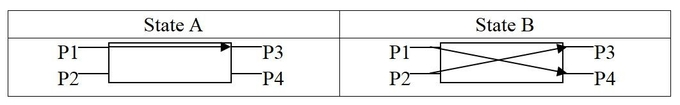

Pin Configurations:
|
Type |
State |
Optical Route |
Electric Drive |
Status Sensor |
||||||
|
2×2B |
|
|
Pin 1 |
Pin 5 |
Pin 6 |
Pin 10 |
Pin 2-3 |
Pin 3-4 |
Pin 7-8 |
Pin 8-9 |
|
Latching |
A |
P1-P3 |
--- |
--- |
GND |
V+ |
Close |
Open |
Open |
Close |
|
B |
P1-P4,P2-P3 |
V+ |
GND |
--- |
--- |
Open |
Close |
Close |
Open |
|
|
Non- |
A |
P1-P3 |
--- |
--- |
--- |
--- |
Close |
Open |
Open |
Close |
|
B |
P1-P4,P2-P3 |
V+ |
--- |
--- |
GND |
Open |
Close |
Close |
Open |
|

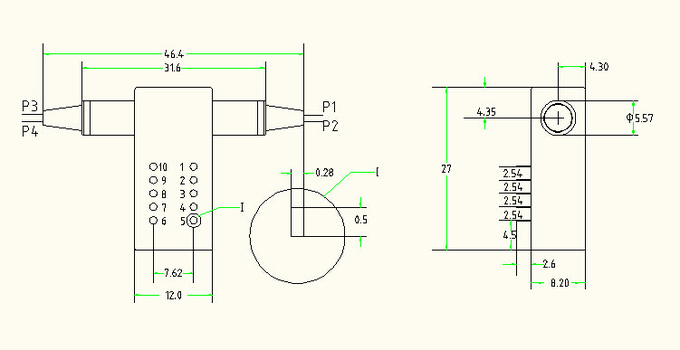

Dimension:
Electrical Specification:
|
|
Specifications |
Voltage |
Current |
Resistance |
|
5V |
latching |
4.5~5.5 V |
36~44 mA |
125 Ω |
|
5V |
Non-latching |
4.5~5.5 V |
26~32 mA |
175 Ω |
|
3V |
latching |
2.7~3.3 V |
54~66 mA |
50 Ω |
|
3V |
Non-latching |
2.7~3.3 V |
39~47 mA |
70 Ω |
Ordering Information:
|
Fiber Type |
Voltage |
Switch type |
Test Wavelength |
TubeType |
Fiber length |
Connector |
|
SM:SM,9/125 |
3:3V |
L:Latching |
850:850nm |
25:250um |
05:0.5m±5cm |
FP:FC/PC,FA:FC/APC |
|
M5:MM,50/125 |
1310:1310nm |
90:90um |
10:1.0m±5cm |
SP:SC/PC,SA:SC/APC |
||
|
M6:MM,62.5/125 |
5:5V |
N:Non-latching |
13/15:1310/1550nm |
X:Others |
15:1.5m±5cm |
LP:LC/PC,LA:LC/APC |
|
X: Others |
X:Others |
|
X:Others |
OO:None,X:Others |
