MEMS Optical Switch

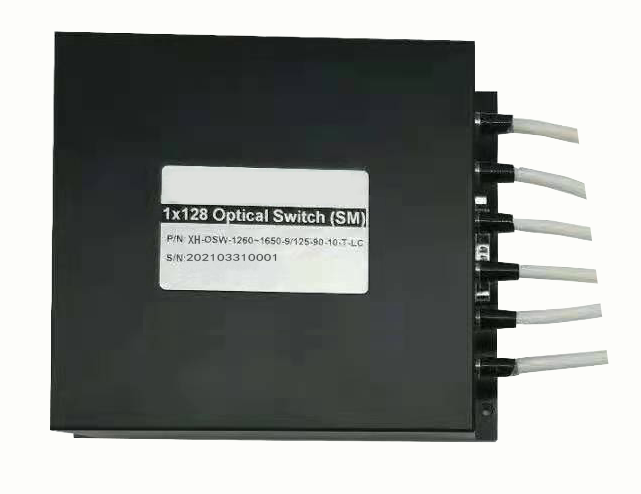

MSW-1×N-optical switch (hereinafter referred to as MEMS optical switch) is a modular product with multi-channel optical path switching function. MEMS optical switch products are made using the electrostatic driven micro mirror scheme, which has the characteristics of small size, fast response speed, stable performance, and can be widely used in various optical communication and testing systems.
Main applications:
Multi channel optical monitoring in optical transmission systems
LAN multi light source/detector automatic switching, optical sensing multi-point dynamic monitoring system
Automated testing of optical fibers, optical devices, networks, and field engineering optical cables in optical testing systems
Optical device installation and adjustment
Features:
Fast switching speed, low loss, high reliability, and long lifespan
Small size, simple TTL control interface
Modular design with low loss
Specifications:
|
Parameter |
Value |
|
|
Operating Wavelength (nm) |
850/1310 ,1260~1650 |
|
|
Fiber Type (um) |
SM,MM,Polarization-Maintaining |
|
|
Extinction Ratio |
≥18 |
|
|
Insertion Loss (dB) |
≤0.8 (N=2～12),≤1.0(N=12～24) ≤1.2(N=24～32),≤1.5(N=32～64) |
|
|
Return Loss (dB) |
SM：≥50 MM：≥30 |
|
|
Crosstalk Value (dB) |
SM |
≥50（N≤32）,≥45（32＜N≤64） |
|
MM |
≥30（N≤16）,≥25（16＜N≤32） |
|
|
Repeatability (dB) |
≤±0.02 |
|
|
Switching time (ms) |
Typical 5ms |
|
|
Switching lifespan (times) |
≥109 |
|
|
Maximum incoming and outgoing optical power (mW) |
500 |
|
|
Operating Temperature(℃) |
-10~+70 |
|
|
Storage Temperature(℃) |
-40~+80 |
|
|
Control Interface |
TTL 、RS232 |
|
|
Operating Voltage (V) |
5V |
|
|

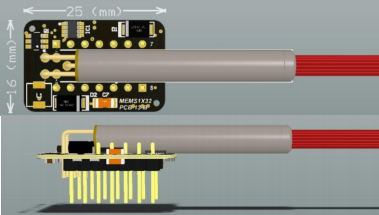

Size (mm) |
25*16*8 |
|
Size:

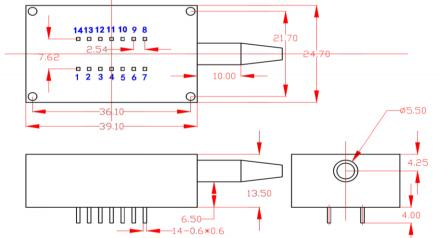

M2 -Type

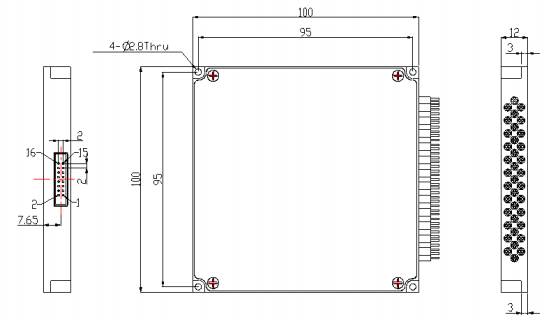

M4-Type

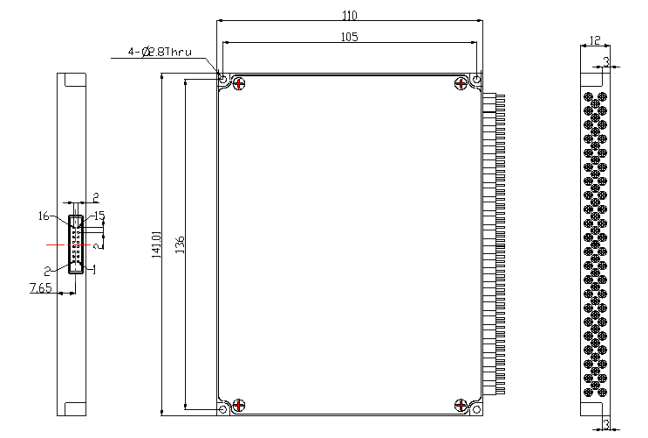

M5-Type
|
Pin |
Pin Definition |
Pin Type |
Level |
Function Description |
|
|
M3,4,5 |
M1,2 |
||||
|
1 |
5 |
D0 |
IN |
LVTTL |
TTL mode: Data bit D0 input |
|
2 |
/ |
D5 |
IN |
LVTTL |
TTL mode: Data bit D5 input |
|
3 |
2 |
VCC |
Power IN |
/ |
DC+5V power supply positive pole |
|
4 |
/ |
D7 |
IN |
LVTTL |
TTL mode: Data bit D7 input |
|
5 |
/ |
D6 |
IN |
LVTTL |
TTL mode: Data bit D6 input |
|
6 |
4 |
GND |
Power IN |
|
Power supply ground |
|
7 |
10 |
D4 |
IN |
LVTTL |
TTL mode: Data bit D4 input |
|
8 |
12 |
D1 |
IN |
LVTTL |
TTL mode: Data bit D1 input |
|
9 |
6 |
TXD |
/ |
/ |
Module UART_ TX |
|
10 |
7 |
RXD |
/ |
/ |
Module UART_RX |
|
11 |
9 |
D2 |
IN |
LVTTL |
TTL mode: Data bit D2 input |
|
12 |
13 |
D3 |
IN |
LVTTL |
TTL mode: Data bit D3 input |
|
13 |
8 |
BUSY |
OUT |
LVTTL |
The high-level module is busy and the control signal is invalid |
|
14 |
1 |
ALARM |
OUT |
LVTTL |
High level module faulty |
|
15 |
3 |
/STROBE |
IN |
LVTTL |
TTL mode: effective falling edge |
|
16 |
14 |
/RESET |
IN |
LVTTL |
Reset, effective at low level, pulse width ≥ 0.5ms |
Order Information :
MSW-1×N-A-B-C-D-E- F
|
N |
A |
B |
C |
D |
E |
F |
|
Port |
Fiber Type |
Wavelength |
Type of protective tube |
Fiber Length |
Connector Type |
Size |
|
2~256 |
SM:9/125um M5:50/125um M6:62.5/125um M10:105/125um PM:PM Fiber |
85: 850nm 13: 1310nm 14: 1490nm 15: 1550nm |
25: 250um 50: 500um 90: 900um |
05: 0.5m 10: 1.0m 12: 1.2m |
OO: None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC MPO |

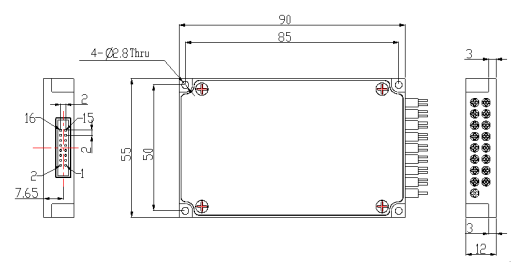

M1: PCB M2: 39*24*13.5 M3: 90*55*12 M4: 100*100*12 M5:110*141*12 |
