As the optical transmission medium, multiple φ0.9mm flame-retardant tight-buffered optical fibers are applied for multi-purpose cabling, which is also covered with a layer of all-dielectric aramid yarn as the strength member. Finally, the outer sheath will be covered with a layer of OFNR/OFNP or CPR-DCA/CCA/BCA material.

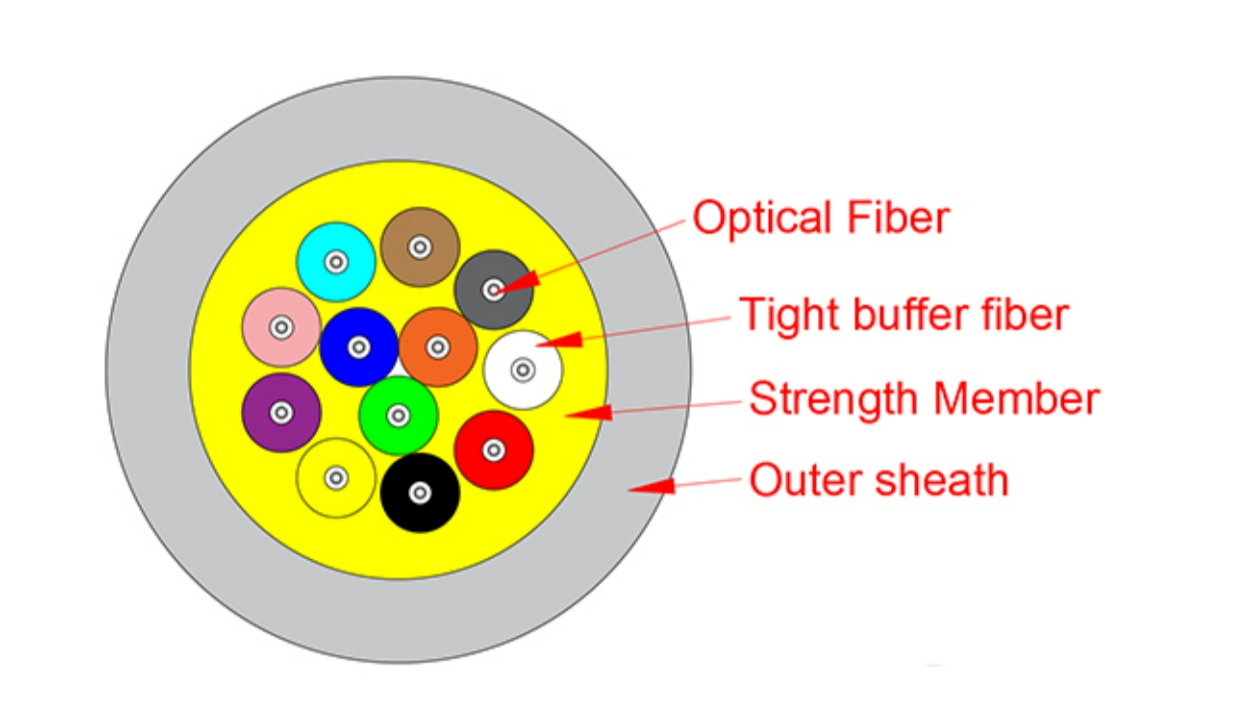

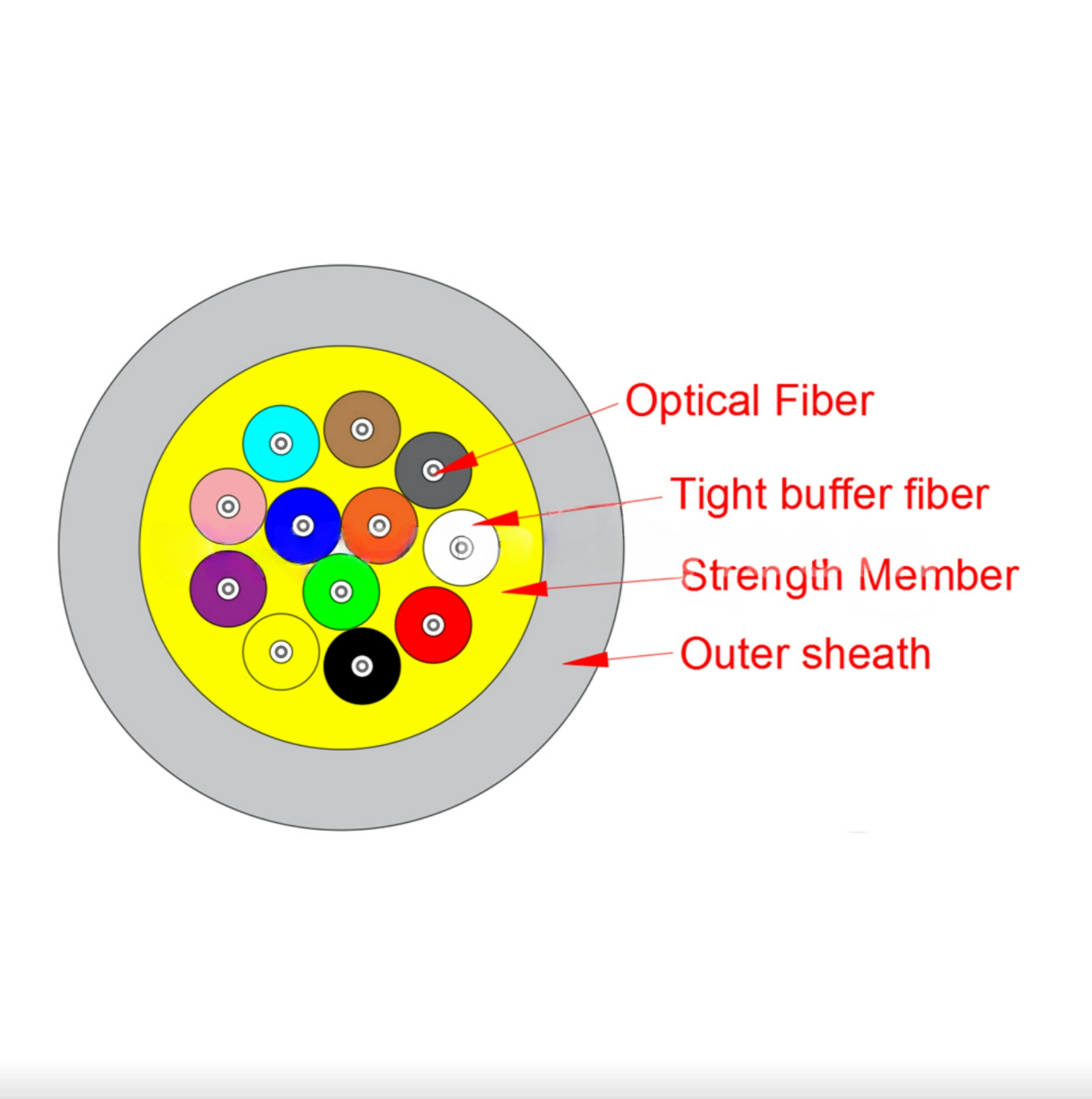

Structure Diagram

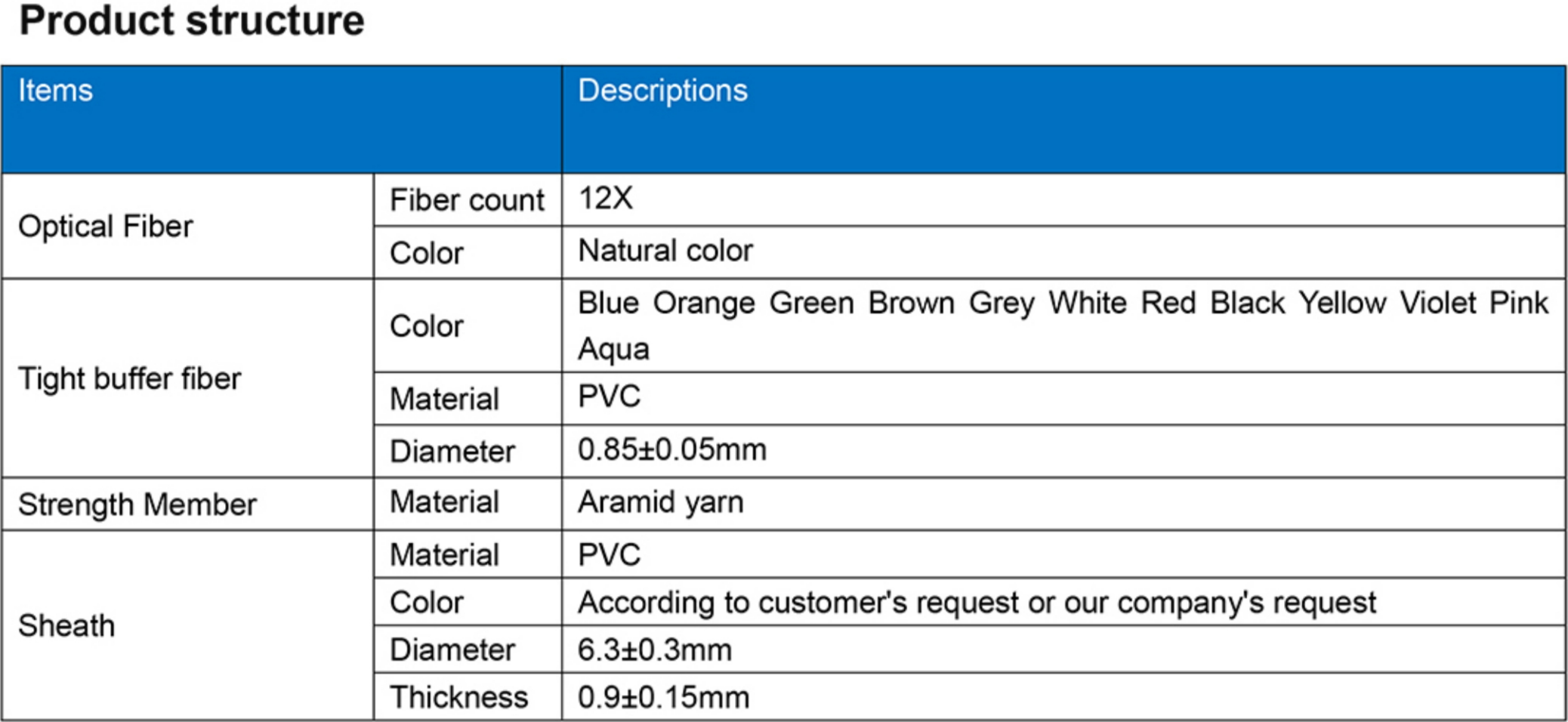

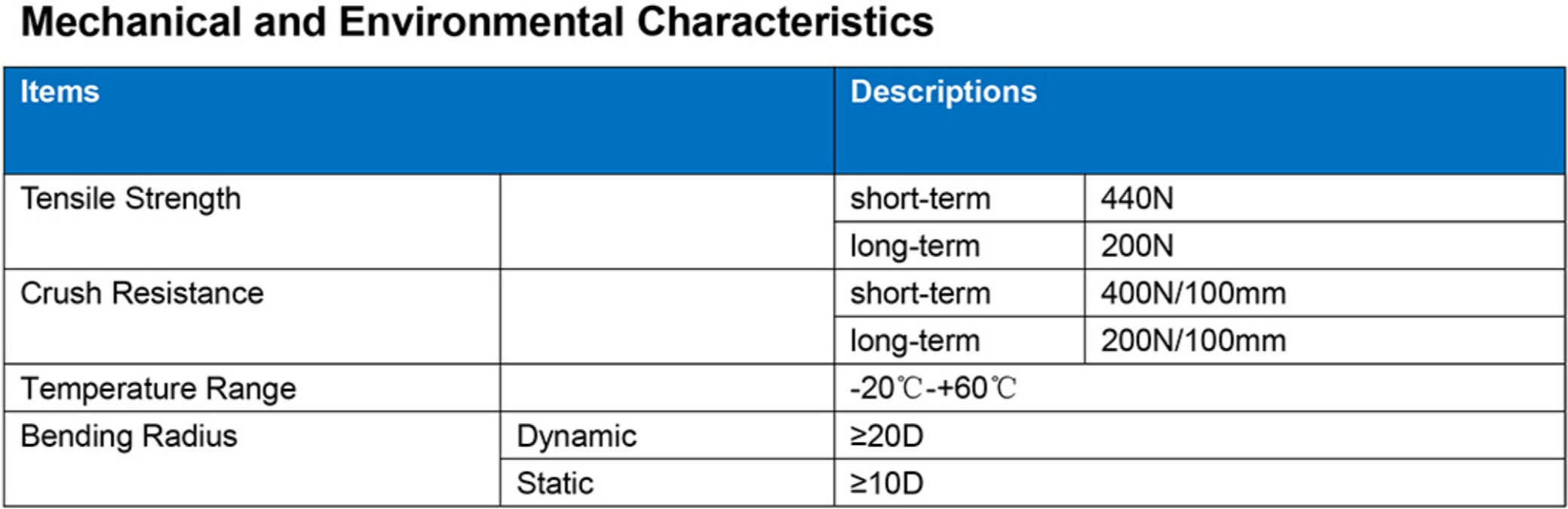

Parameter:

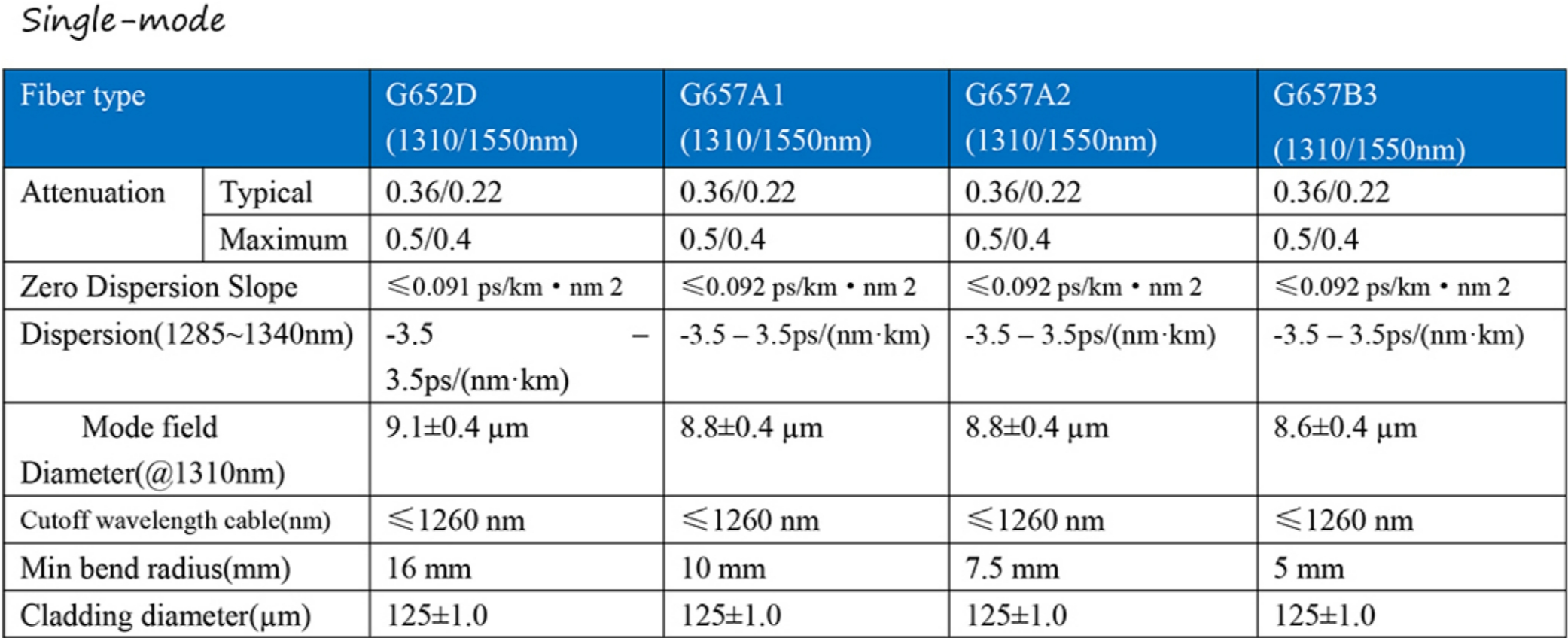

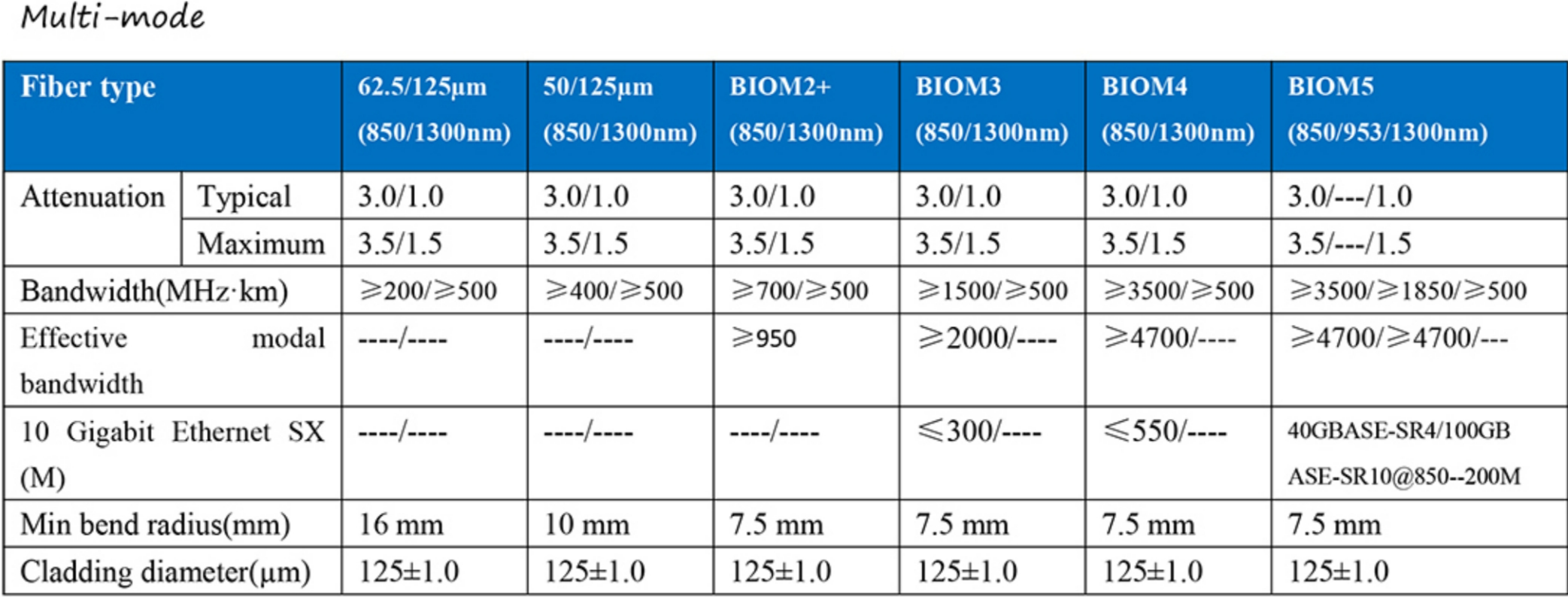

Optical parameters and properties
Application:
This type of cable is mainly applicable for multi-directional signal transmission between instruments or communication
equipments, indoor integrated cabling, the backbone of the building, and connection of multi-core fiber optic patch cords.
