Polarization-Insensitive Optical Isolator

SOPO's 1310nm 1550nm Single stage/Dual stage Polarization-Insensitive Optical Isolator utilizes Faraday effect of Magneto optical crystal. It guides optical light in one direction and eliminates back reflection and backscattering in the reverse direction at any polarization state. The unique manufacturing process and optical path epoxy-free design enhance the device's high power handling capability. The devices are characterized by high performance, high reliability, and low cost. It has been widely used in EDFAs, Raman amplifiers, DWDM systems, Fiber lasers, transmitters, and another fiber optic communication equipment to suppress back reflection and backscattering.

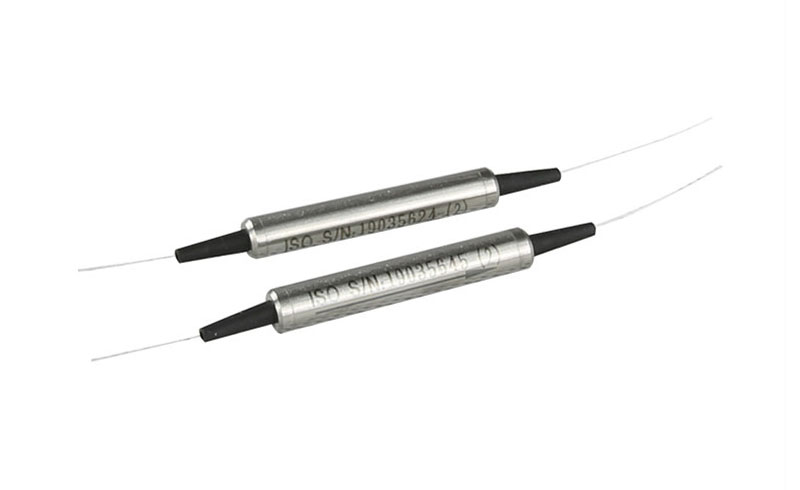

Polarization-Insensitive Optical Isolator

Features:

High Isolation

Low Insertion Loss

High Return Loss

Low Polarization Sensitivity

Application:

Fiber optic Amplifiers

CATV Fiber optic Links

Fiber optic Systems Testing
Fiber optic LAN Systems

Telecommunications

Performance Specifications (Standard) Single Stage

	P Grade	A Grade
Operating Wavelength (nm)	1310 or 1550
	±15
Typical Isolation(dB)	40	40
Minimum Isolation (dB)	30	28
Typical Insertion Loss (dB)	≤0.35	≤0.45
Maximum Insertion Loss (dB)	≤0.5	≤0.7
Return Loss (In/Out) (dB)	≥65/60	≥55/55
polarization dependent loss(dB)	≤0.05	≤0.1
polarization mode dispersion(ps)	0.2(0.05 available upon request)
Operating Temperature(℃)	-10~+75
Storage Temperature(℃)	-40~+85
Fiber Type	Corning SMF-28
Fiber Length(min)	1M each end
Package Dimension(mm)	Φ5.5xL30
Power Handling(mW)	300

Performance Specifications (Standard) Dual Stage

Parameter	P Grade	A Grade
Operating Wavelength (nm)	1310 or 1550
Typical Isolation(dB)	56	50
Minimum Isolation (dB)	45	42
Typical Insertion Loss (dB)	≤0.5	≤0.5
Maximum Insertion Loss (dB)	≤0.7	≤0.8
Return Loss (In/Out) (dB)	≥65/60	≥55/55
polarization dependent loss(dB)	≤0.05	≤0.1
polarization mode dispersion(ps)	0.05
Bandwidth(nm)	±30
Operating Temperature(℃)	-10~+75
Storage Temperature(℃)	-40~+85
Fiber Type	Corning SMF-28
Fiber Length(min)	1M each end
Package Dimension(mm)	Φ5.5xL30
Power Handling(mW)	300
