This is a Gigabit Ethernet stand-alone Mini media converter that provides cost effective, entry-level media conversion between 1x10/100/1000Base-TX ports and 100/1000Base-FX ports. With its fixed configuration, deployments are just plug-and-play, and with it is small size, it is ideal for locations where space is limited. 1x10/100/1000Base Fiber Media Converter, SFP Fiber Media Converter, Options in single mode dual fiber, multimode dual fiber and single mode single fiber. The Media Converter Chassis can be also supplied, the 1U height 12 slots media converter rack mount chassis specially designed for accommodating chassis-based mini Media Converters.
Introduction

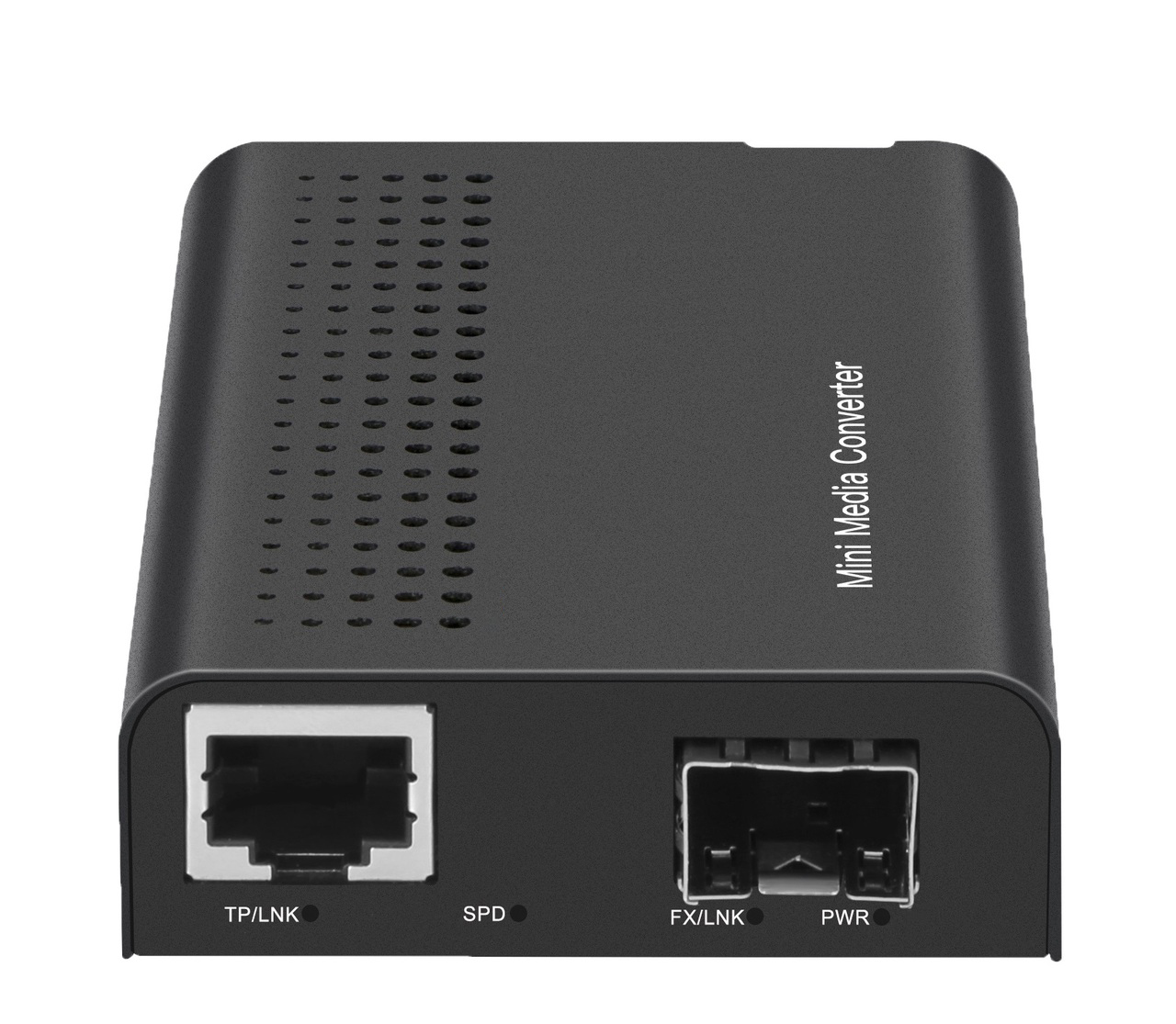

This is a Gigabit Ethernet stand-alone Mini media converter that provides cost effective, entry-level media conversion between 1x10/100/1000Base-TX ports and 100/1000Base-FX ports.
With its fixed configuration, deployments are just plug-and-play, and with it is small size, it is ideal for locations where space is limited. 1x10/100/1000Base Fiber Media Converter,
SFP Fiber Media Converter, Options in single mode dual fiber, multimode dual fiber and single mode single fiber.
The Media Converter Chassis can be also supplied, the 1U height 12 slots media converter rack mount chassis specially designed for accommodating chassis-based mini Media Converters.
Features
Ø Unit and Port LEDs allow for quick status information.
Ø Auto-Negotiation.
Ø Fixed Full-Duplex on fiber.
Ø Auto-MDI/MDIX.
Ø Automatic Link Restoration.
Ø Connect to legacy network equipment.
Ø Eliminate Collision Domains.
Ø 10/100/1000Base-TX UTP to 100/1000Base-FX fiber media converter.
Ø Supports IEEE802.3U IEEE802.3z 1000Base-TX/FX protocols , IEEE802.3ab standards.
Ø SC/FC/ST/LC optional.
Ø DIP switch to set different configurations.
Ø Compact package size.
Ø Supports IEEE802.3x flow control; 100Base-FX interface; auto MDI-MDIX function; LFP function; ALS function;The media converter is reset again after the fiber link is disconnected.
Specification
|
Transmission Distance |
Twisted-pa 100M standard CAT5/CAT5e/CAT6 cable ; SFP: Distance depend on plug-in Fiber Tranceiver; Fiber: MM 500m/2km, SM 20/40/60/80/120km; |
|
Store-and-Forward Mode |
1518Bytes |
|
Pass Through Mode |
12KBytes |
|
LFP Mode |
Support |
|
DIP Switches |
LFP function (optional) ALS function (optional) FX speed (optional) |
|
Connector |
One UTP RJ-45 connector, one SC/ST connector, one DC-inlet connector |
|
Operation Mode |
Full duplex or half duplex mode |
|
Power Requirement |
Operating Voltage DC 5~12V Rated Current: 0.5/0.25A |
|
Power Consumption: Full-load<3W |
|
|
Environmental Requirement |
Operating Temperature: 0℃~+50℃ Storage Temperature: -10℃~+70℃ Relative Humidity: 5%~95% (non-condensation) MTBF: 50,000 h Enclosure: Metal |
|
Mechanical Structure |
Dimensions: 90mm(D)×60mm(W)×20mm(H) Weight: 120g |
|
Warranty |
1 Year |
|
Emissions |
FCC Class A, CE Class A |

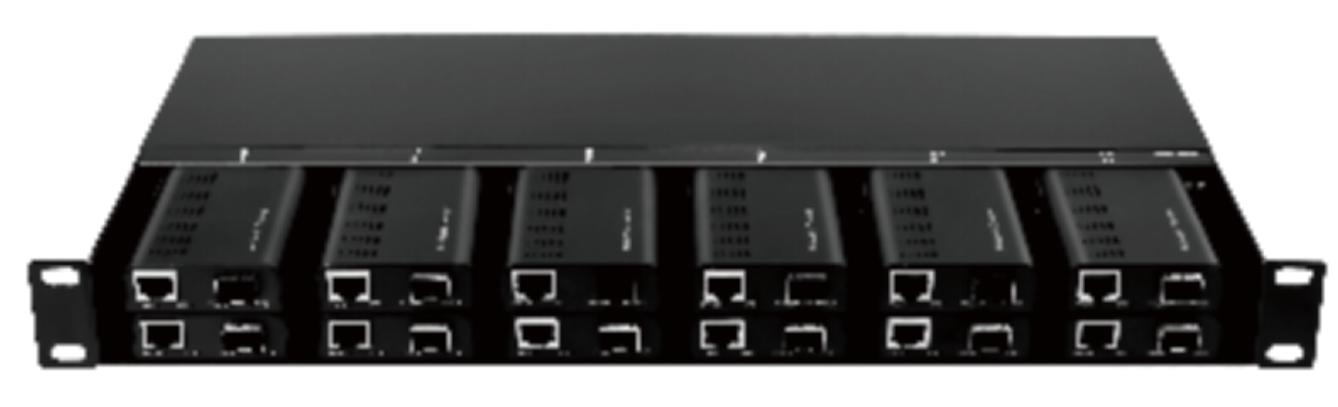

12-Slot Mini Media Converter Rack
Introduction
SOPO provides Mini 10/100Base Fast Ethernet / 1000Base Gigabit Fiber Media Converter and SFP Fiber Media Converter, as well as 1U height
12 slots media converter rack mount chassis specially designed for accommodating chassis-based Mini Media Converters. The Mini Media converter
is designed for Space Saving and powered by a single internal universal power supply, eliminating the need for the multiple power connections which
associated with multiple converter installations.
The 1U 12 slots media converter rack mount chassis is cost effective and supports dual power DC48V / AC220V. SOPO offers space saving Mini Media
Conversion in the wiring closet by providing a means for rack space while reducing the number of wall outlet power connections required. The Mini Media
Converters is hot-swappable, which can be removed from the rack, powered externally, and used as stand-alone units in new applications as your network
needs change in the future.
Specification
Part Number
MC-12
Slots
12-solts in front for silde-in-modules
Unit LEDs
Power & In-Use LED’s for each power supply (with use of optional LED module)
Dimensions
485mm(D)×245mm(W)×44.5mm(H)
Power
Universal input 100~240V, 50/60Hz, 3.0~1.5A;
Redundant Power Supply
Environment
The temperature: 0~50℃
Humidity: 5%~95% non-condensing
0-10,000 ft.altitude
Shipping Weight
3.2kg
Warranty
1 Year
Compliance
UL Listed; En60950; FCC & CISPR Class A; CE Mark
