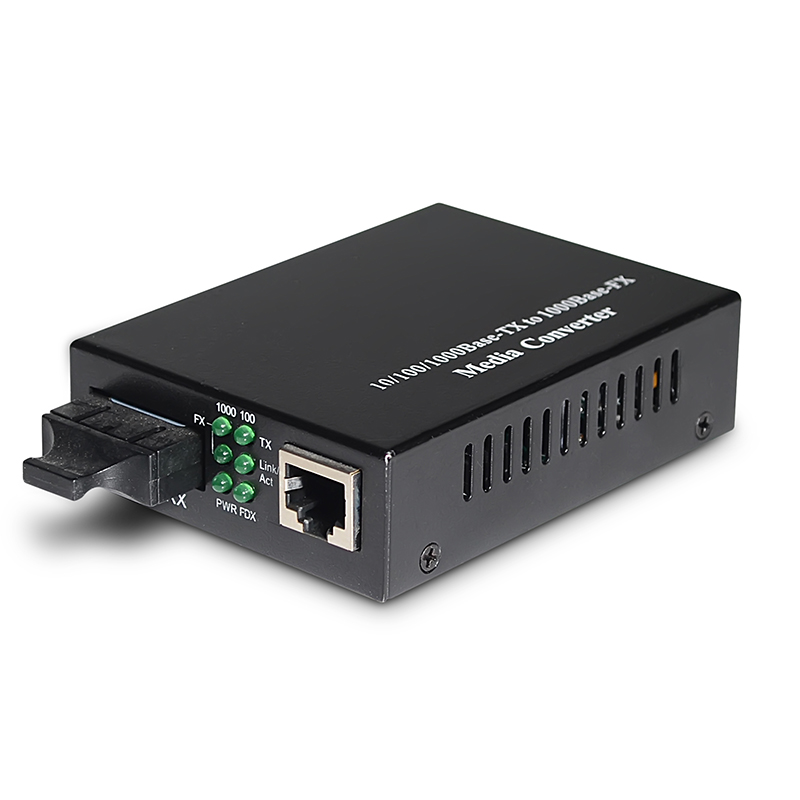

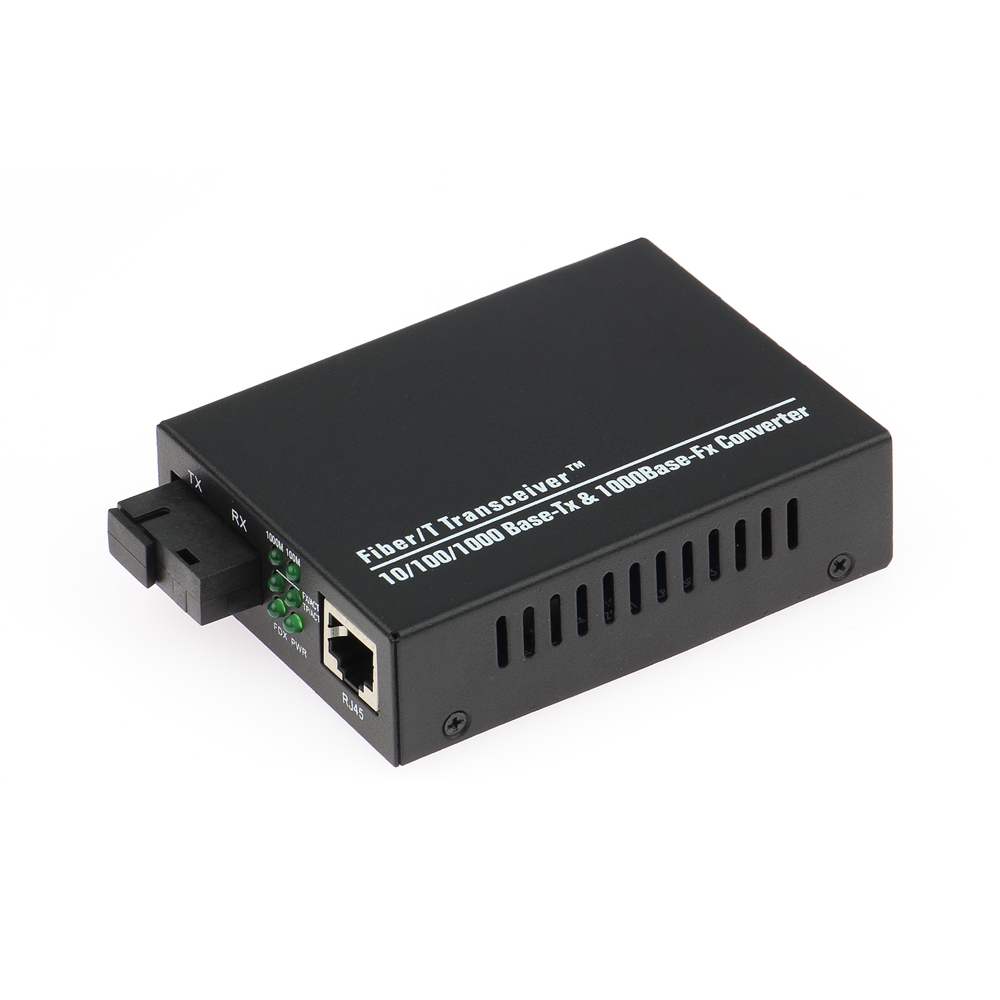

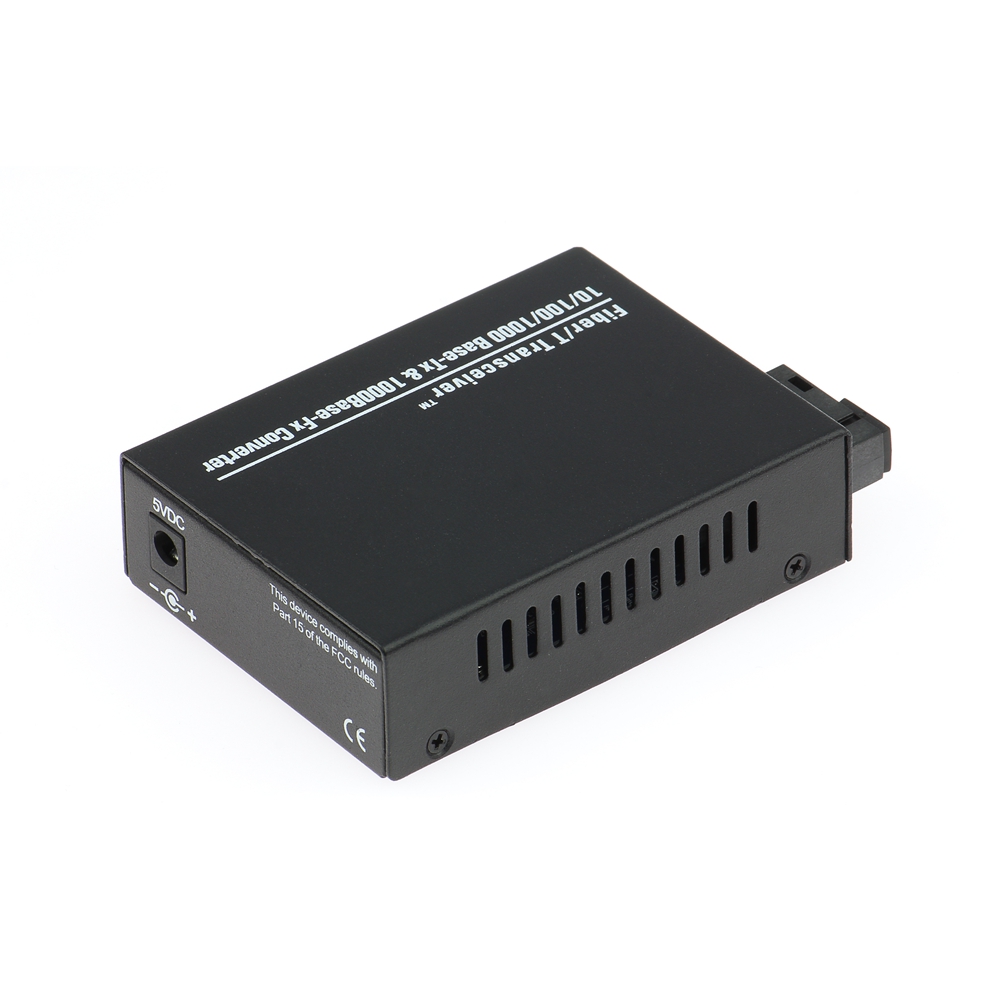

The SOPO Gigabit Media Converter with 10/100/1000M SM Dual Fiber Converter is a conversion device for Ethernet optoelectronic signals between the 10/100/1000M MUTP interface (TX) and the 1000M fiber interface (FX). Traditional 10/100/1000M Ethernet can be extended to a distance of 100km through a single fiber link. Due to the use of the latest integrated circuits, the performance and quality of the product are very good. It must be used in a coupler because the transmitted optical device is different from the received optical device in wavelength. Six sets of LED indicator lights can comprehensively monitor the working status of the frequency converter. End users can easily observe the condition of the network. This series of products is reasonably priced and specifically designed for network end users. There are many other advantages, such as isolation protection, good data security, work stability, and easy maintenance.
Feature
1) Conversion between auto-adaptation 10Base-T, 100Base-TX or 1000Base-T and 1000Base-SX/LX , full duplex 1000M working pattern.
2) With distinct HIC solution, low-temperature-rise chip, no need of cooling system, realization of flow control,decrease of broadcast storm.
3) With famous brand optical-electronic-integration module providing excellent optical and electrical properties toensure reliable data transmission and long working life.
4) Supporting broadcast filtering, address auto-learning and auto-updating, and store-and-forward operating mechanism.
5) Supporting full-duplex flow control or half-duplex back pressure working pattern, along with Auto-negotiation.
6) Supporting 9kbyte super data packet transmission By store and forwarder mode
7) Providing indicator lamps for link-loss, electrical and optical link diagnosing, dynamic data transmission andfull/half duplex, data rate.
8) With more than 50,000 hours MTBF, complying with telecom operating standard.
9) Supporting choosing optical ports from dual fiber(MM),dual fiber(SM),single fiber(SM).
Technical Spec
|
Access Method |
10/100/1000Mbps |
|
Standard |
IEEE802.3,IEEE802.3u,IEEE802.3ab ,IEEE802.3z ,IEEE802.1q,IEEE802.1p,IEEE802.1d |
|
Wavelength |
850nm/1310nm/1550nm |
|
Distance |
Dual Fiber MM :550m Dual Fiber SM : 10/20/30/50/80Km Single Fiber SM : 20/40/60/80Km CAT5:100m |
|
Conversion Method |
Media Conversion |
|
Time Delay |
<10μs |
|
BER |
<1/1000000000 |
|
LED Indicator Lamps |
1000M,100M, FX LINK/ACT, TP LINK/ACT, FDX, POWER |
|
Power Supply |
DC5V 2A (external power), AC220 0.5A /DC-48( internal power ) |
|
Power Dissipation |
3W |
|
Operating Temperature |
0 ~ 50 ℃ |
|
Working rate |
10/100/1000Mbps |
|
Storage Humidity |
5% ~ 90% |
|
Storage Temperature |
-40 ~ 70 ℃ |
|
Working humidity |
5% ~ 90% non-condescending |
|
Dimensions: |
94mmx70mmx26mm |
Order information:
|

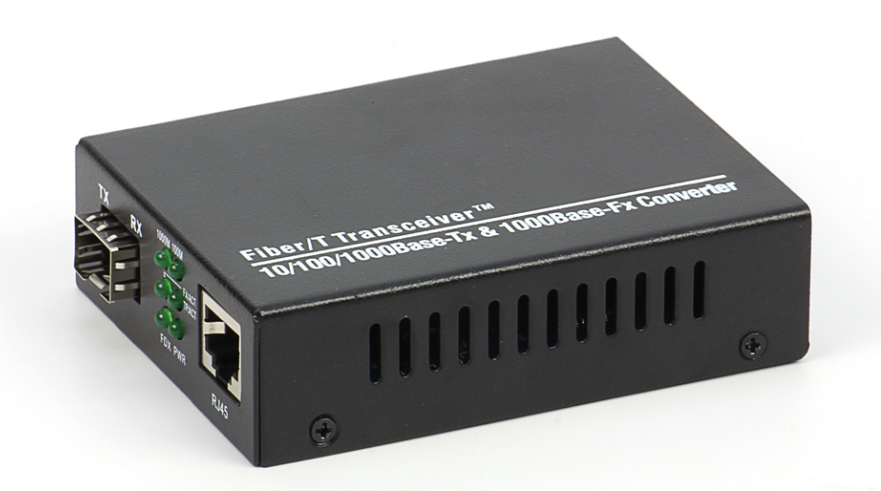

MC-1000-SFP |
Media Converter 1×1000M SFP slot to 1×10/100/1000M Ethernet |
|
MC-1000-SC-0.55 |
Media Converter 1×1000M SC MM 850nm 550M to 1×10/100/1000M Ethernet |
|
MC-1000-SC-2 |
Media Converter 1×1000M SC MM 1310nm 2KM to 1×10/100/1000M Ethernet |
|
MC-1000-SC-20 |
Media Converter 1×1000M SC SM 1310nm 20KM to 1×10/100/1000M Ethernet |
|
MC-1000-SC-40 |
Media Converter 1×1000M SC SM 1310nm 40KM to 1×10/100/1000M Ethernet |
|
MC-1000-SC-20A |
Media Converter 1×1000M SC SM Tx1310nm/Rx1550nm 20KM to 1×10/100/1000M Ethernet |
|
MC-1000-SC-20B |
Media Converter 1×1000M SC SM Tx1550nm/Rx1310nm 20KM to 1×10/100/1000M Ethernet |
|
MC-1000-SC-40A |
Media Converter 1×1000M SC SM Tx1310nm/Rx1550nm 40KM to 1×10/100/1000M Ethernet |
|
MC-1000-SC-40B |
Media Converter 1×1000M SC SM Tx1550nm/Rx1310nm 40KM to 1×10/100/1000M Ethernet |
Note:
1. Power supply provided by user or order additionally.
2. SC connector as default, FC/ST can be also customized.
