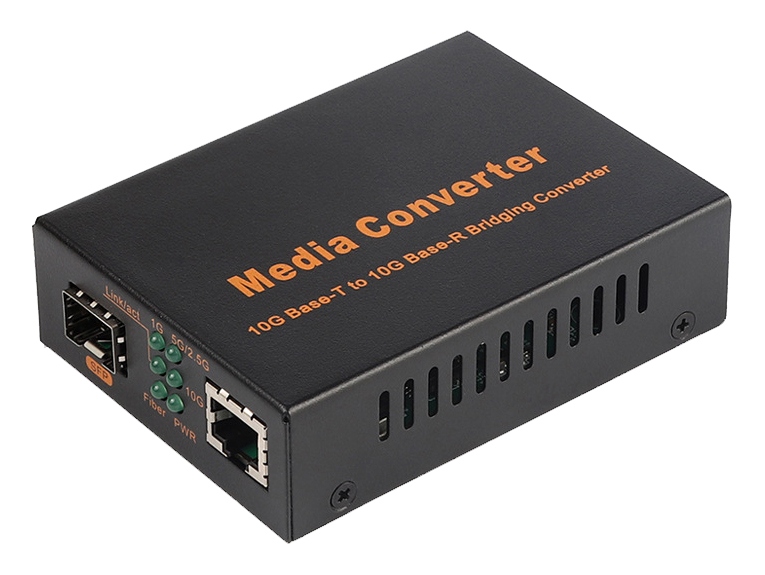

10G media converter is an Ethernet converter between Ethernet electrical signal and optical signal. It converts between short distance twisted pair signal of 10GBase-TX and 10GBase-FX optical signal. Customer can choose different SFP modules to achieve the smooth conversion and connection. It has 1 10G fiber port and 1 RJ45 port. Except extending the transmission distance, there are also many other advantages such as isolation protection, good data security, working stability and easy maintenance.
Overview:
10G media converter is an Ethernet converter between Ethernet electrical signal and optical signal. It
converts between short distance twisted pair signal of 10GBase-TX and 10GBase-FX optical signal.
Customer can choose different SFP modules to achieve the smooth conversion and connection. It has
1 10G fiber port and 1 RJ45 port. Except extending the transmission distance, there are also many
other advantages such as isolation protection, good data security, working stability and easy
maintenance.
Feature:
which ensures non-blocking data transmission, security and stability
Supports1-Port 10/100/1000/2500/5000/10000 Base-T
( 10Mbps/100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps ）RJ45the Ethernet port + 1-Port 1G/10G
Base-R( SFP/SFP+)
Small latency on the data transmission.
Support various wavelengths including 850nm, 1310nm, 1550nm and CWDM/DWDM under
ITUT rule.
Supports Jumbo Frame.
Specification:
|
Standards |
IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T |
IEEE 802.3bz 2.5GBASE-T IEEE 802.3ae 10GBASE-T IEEE 802.3x Full-Duplex Flow Control |
|
Certifications |
CCC, CE, FCC, RoHS |
|
Ethernet Port
|
Connector: RJ45 Data Rate:10Mbps/100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Distance: 100m UTP Type: UTP-5E or higher level
|
|
Fiber Port
|
Connector: SFP slot Data Rate: 10Gbps Optical Wavelength: 850nm/1310nm/1490nm/1550nm Optical Fiber Type: Single mode 9/125μm; Multi mode 50/125μm、62.5/125μm Distance: 550m～100km
|
|
Performance
|
Processing Type: Store and Forward Transmission Mode: Full/half-duplex auto-adaptive MAC Table Size: 2K Buffer Space: 1Mbit Time Delay: ＜20μs
|
|

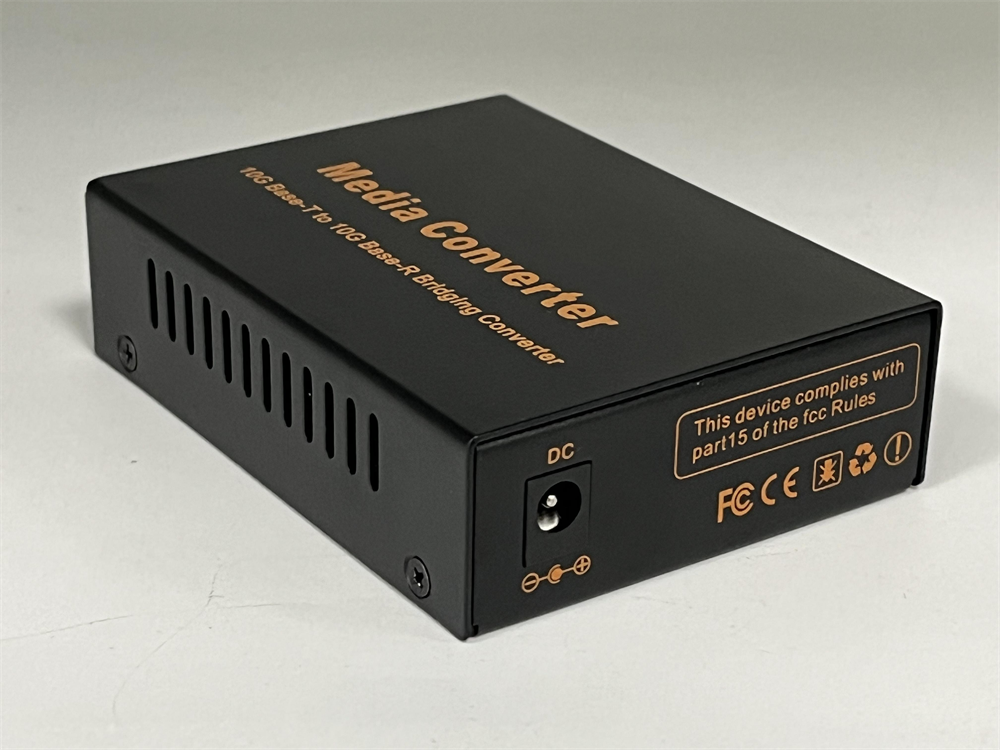

Power
|
Power type: external power supply Input Voltage: AC100V～240V 50/60Hz Connector: DC Socket Working Voltage: 5V4A&12V Power Consumption: 0.75W～3W
|
|
Environment
|
Storage Temperature: -40～70℃ Operating Temperature: -10～55℃ Relative Humidity: 5-90% ( no condensation)
|
|
Warranty
|
1 year
|
|
Physical Characteristics
|
Dimension: 95×70×26mm Weight: 0.1kg Color: Metal, Black
|
Order information:
W10G-F 1×10GBase-TX to 1×10GBase-FX, SFP slot
Note: Power supply default as 12V
