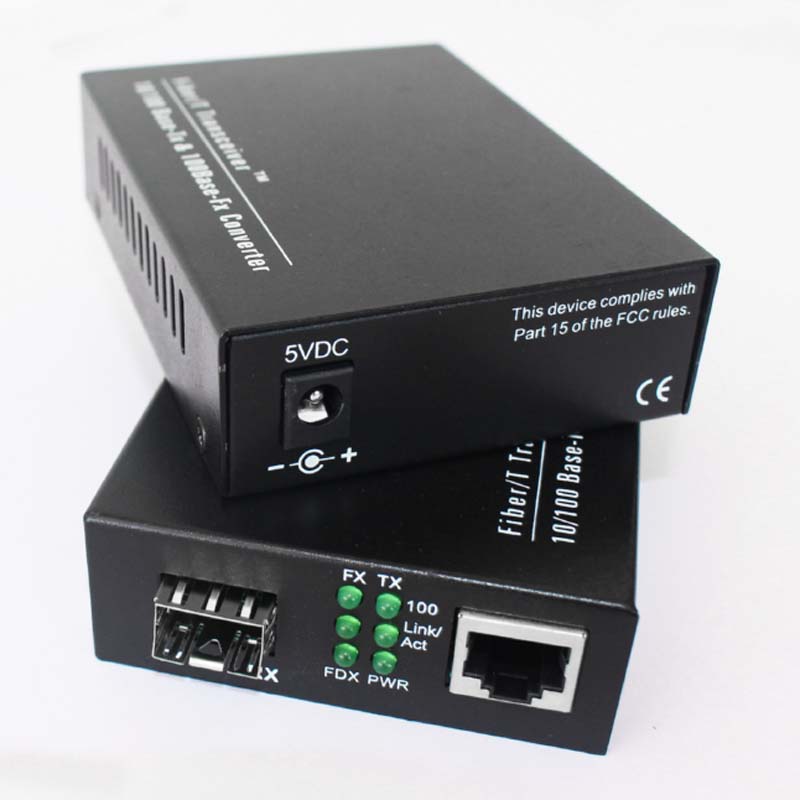

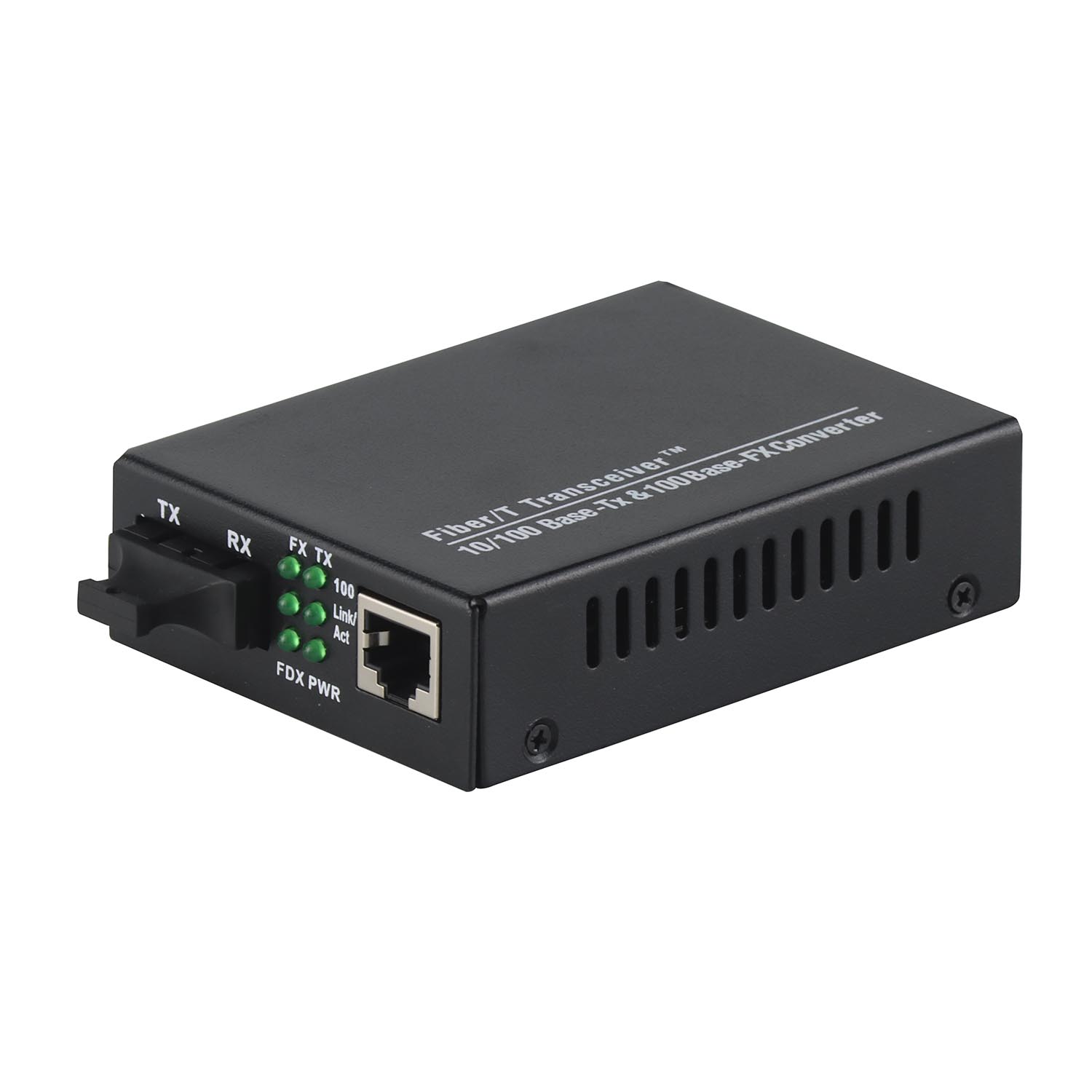

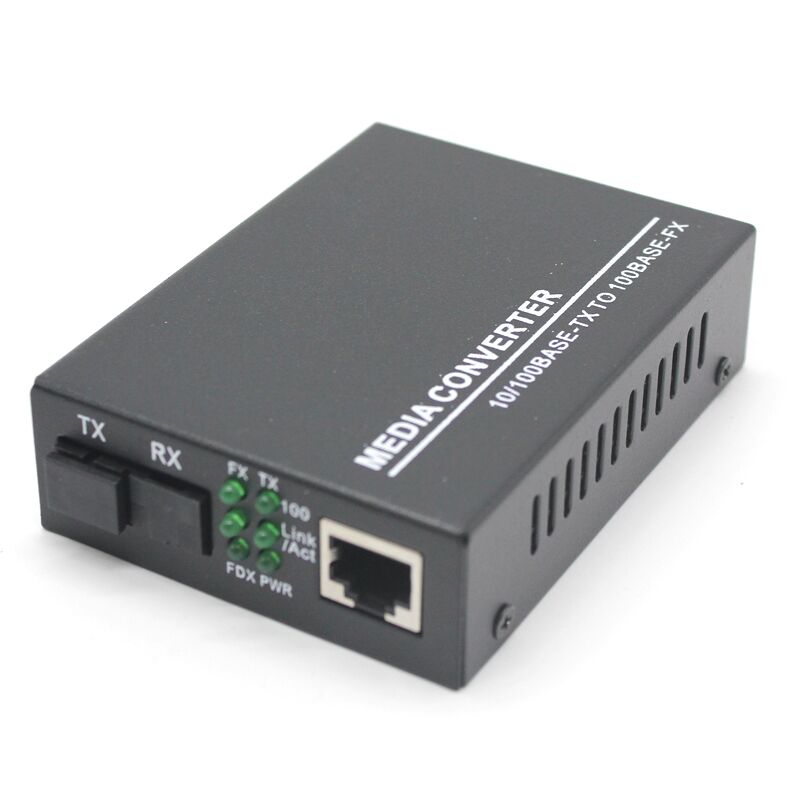

10/100M media converter is the perfect solution for seamless connectivity between fiber and Ethernet networks. This converter supports 10/100Mbps adaptive rate conversion, ensuring stable and efficient data transmission between copper and fiber. Utilizing advanced optical-electrical conversion technology, it's widely used in enterprises, data centers, and network operators. It supports both full-duplex and half-duplex transmission modes, offering a high-performance and flexible connection for your network needs.
1. Feature
10/100Mbps auto-sensed, easily upgrade
full-duplex and half-duplex auto-sensed
MDI/MDI-X Auto Negotiation
10/100Mbps store-and-forward
100Mbps cut-through transmission
Packet size up to1518bytes
Supporting VLAN / VoIP /QoS packets
Support flow control and reduce broadcast packets
Supporting STP to form a redundant network
Extremely low power consumption, low heat, stable performance
Providing Desktop, Wall-mounted, Chassis, DIN-rail installation
LFP (Link Fault Pass-through) Function
External Power Adapter or USB power source
DIP Switch to set configurations
Supporting extra-long packets up to 1600 bytes
2. Technical Spec
|
Standard |
IEEE802.3 10Base-T Ethernet, |
|
Data Rate |
Copper: 10/100M; |
|
Flow control |
Full duplex: flow control; |
|
Copper Port |
No.s of Copper Port: 1 |
|
Fiber Port |
No.s of Fiber Port: 1 Distance: MMF 2Km, SMF 20/40/80/100/120Km, Bi-di 20/40/80/100Km |
|
LED indicators |
PWR (power supply); |
|
Power supply |
Working power: DC5V 1A |
|
Power consumption |
<2W |
|
Environment |
Operating temperature : -10~55ºC |
|
Dimensions |
Internal: 94mmx70mmx26mm |
|
Gross Weight |
Internal : 0.4kg External : 0.5kg |
