Multi-purpose cable-armoured cable with family of micro clusters uses extruded flame-retardant family of micro clusters with fiber coating as transmission medium and combine them into the spiral armoured stainless steel tube, which is covered by a layer of full dielectric strength member yarn as support unit. Finally, the cable is completed with a layer of outer sheath with OFNR/OFNP or CPR-DCA/CCA/BCA material. The fiber optic cables are designed for use in plenums, risers and general ambient and horizontal installations for constructure of internal backbones. These multi-fiber cables use individually jacketed TBII® buffer fibers, allowing for consistent stripping and convenient termination. The fibers are grouped into jacket subunits and surrounded by one piece of dielectric center member. The core is wrapped flexibly and spirally.With armour, it can provide easy one-step installation and multiple anti-crush protection. Another, with flame retardant jacket, this cable is especially suitable for the scenario with heavy traffic or more challenging mechanical exposure requiring extra robust cable.

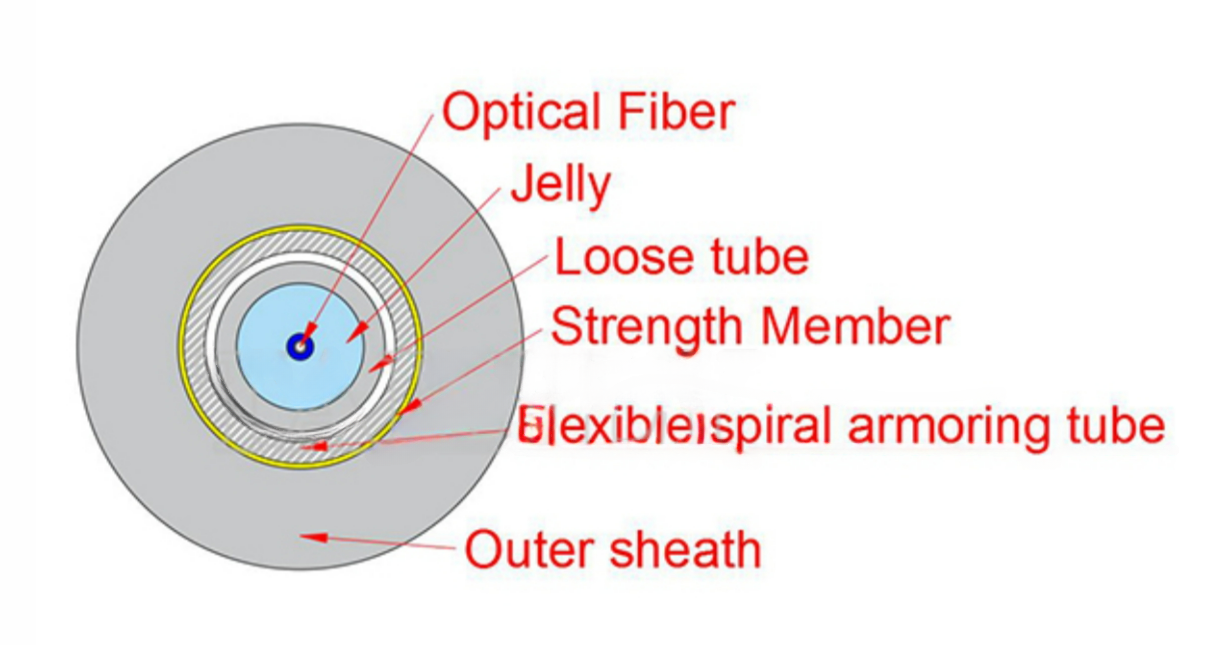

Structure Chart

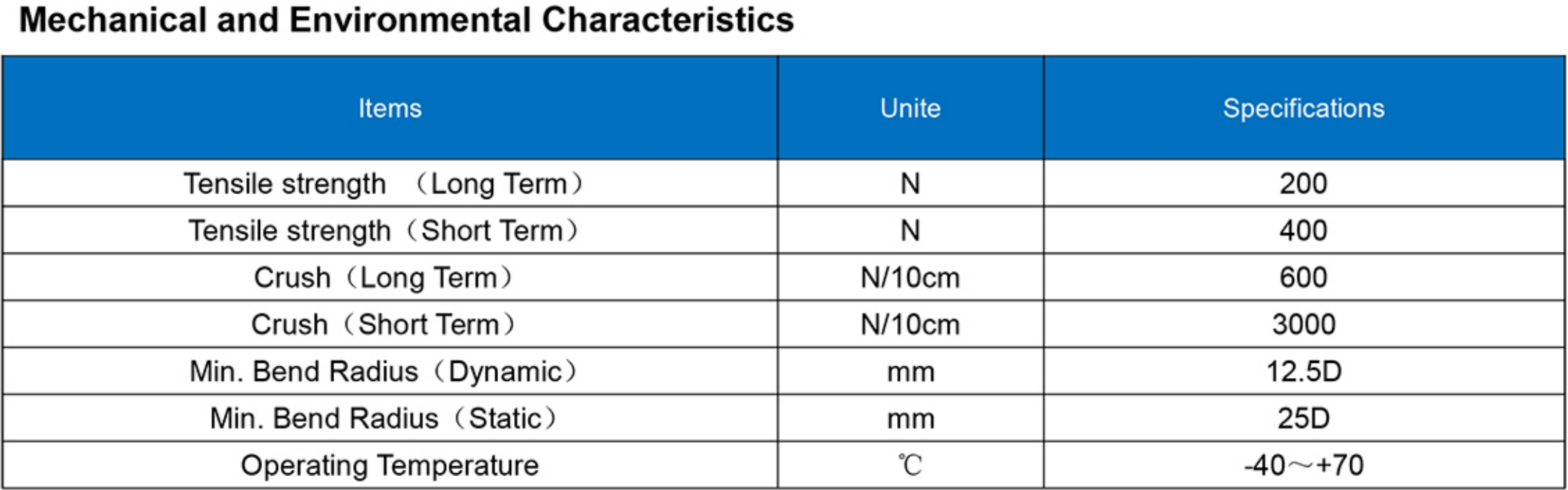

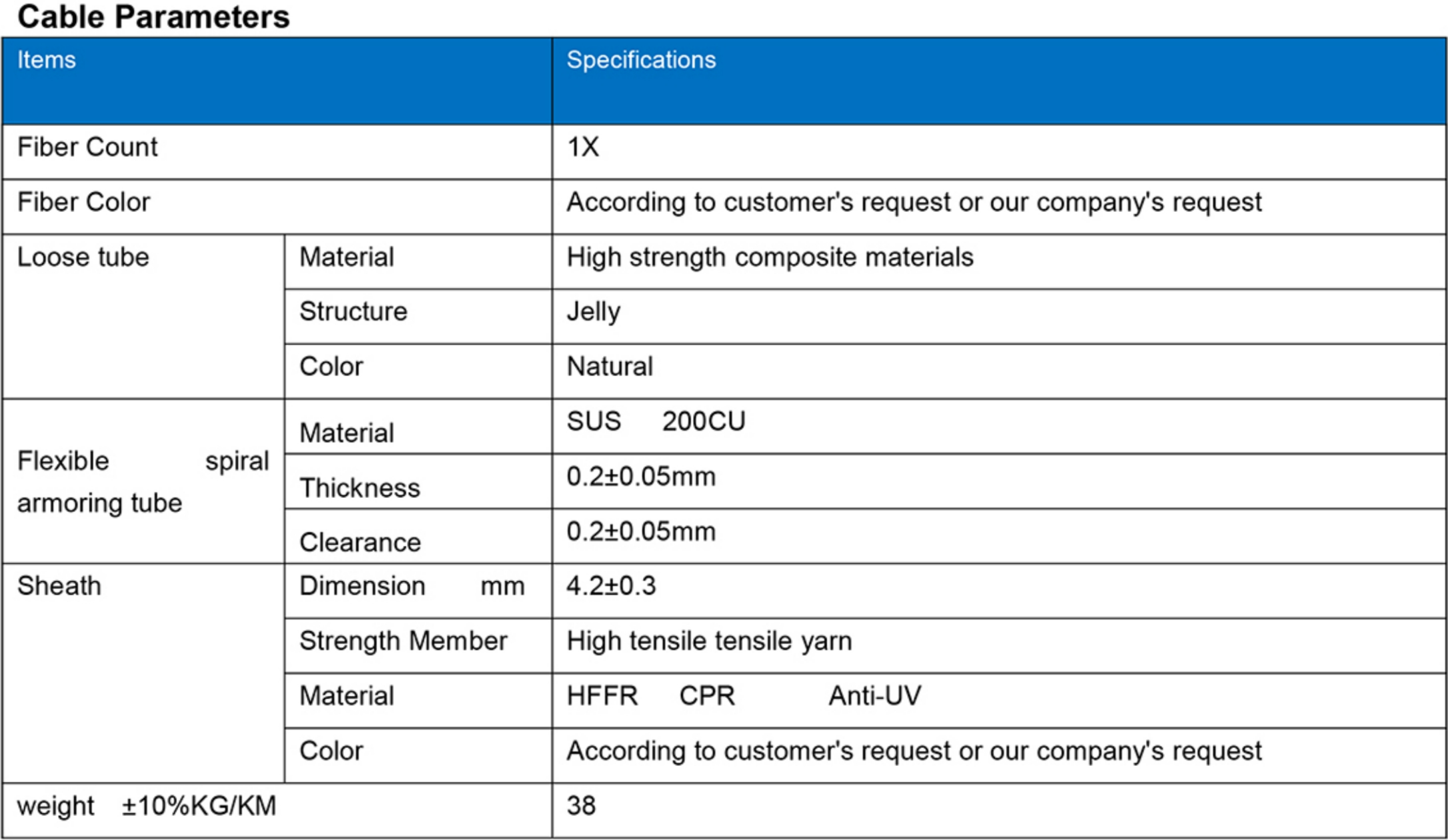

Parameter:

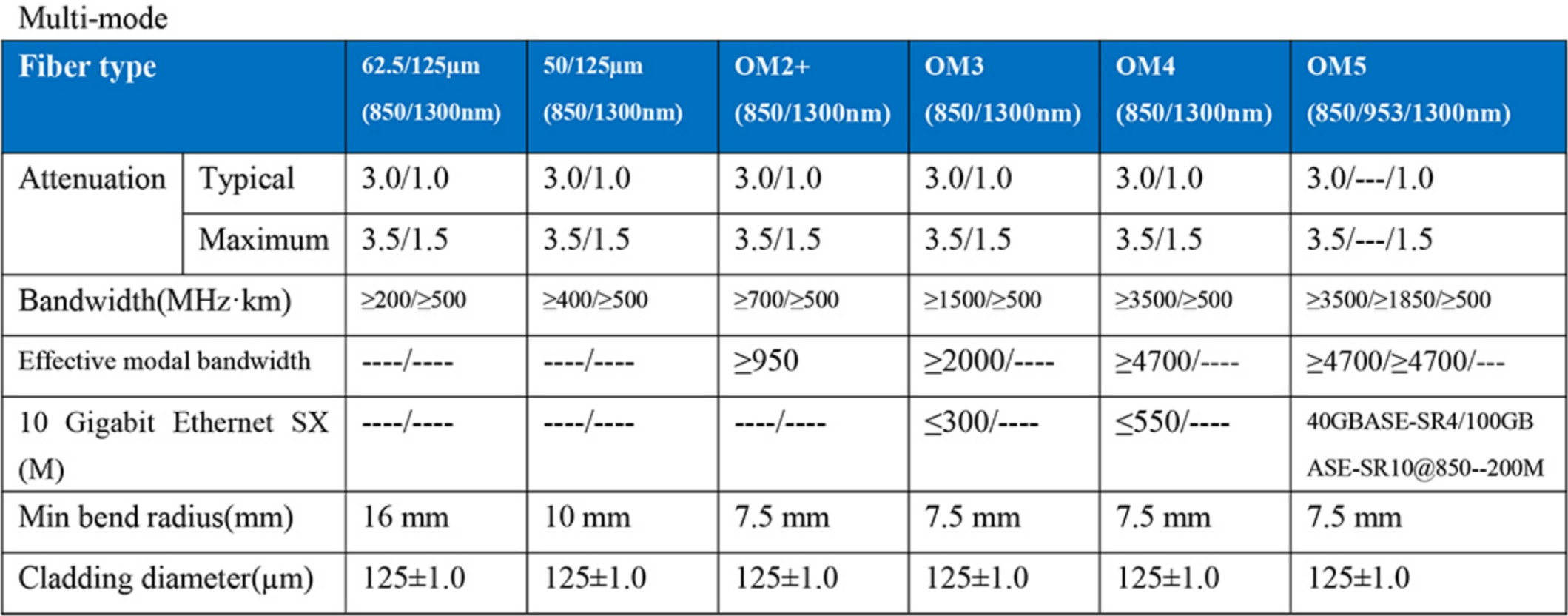

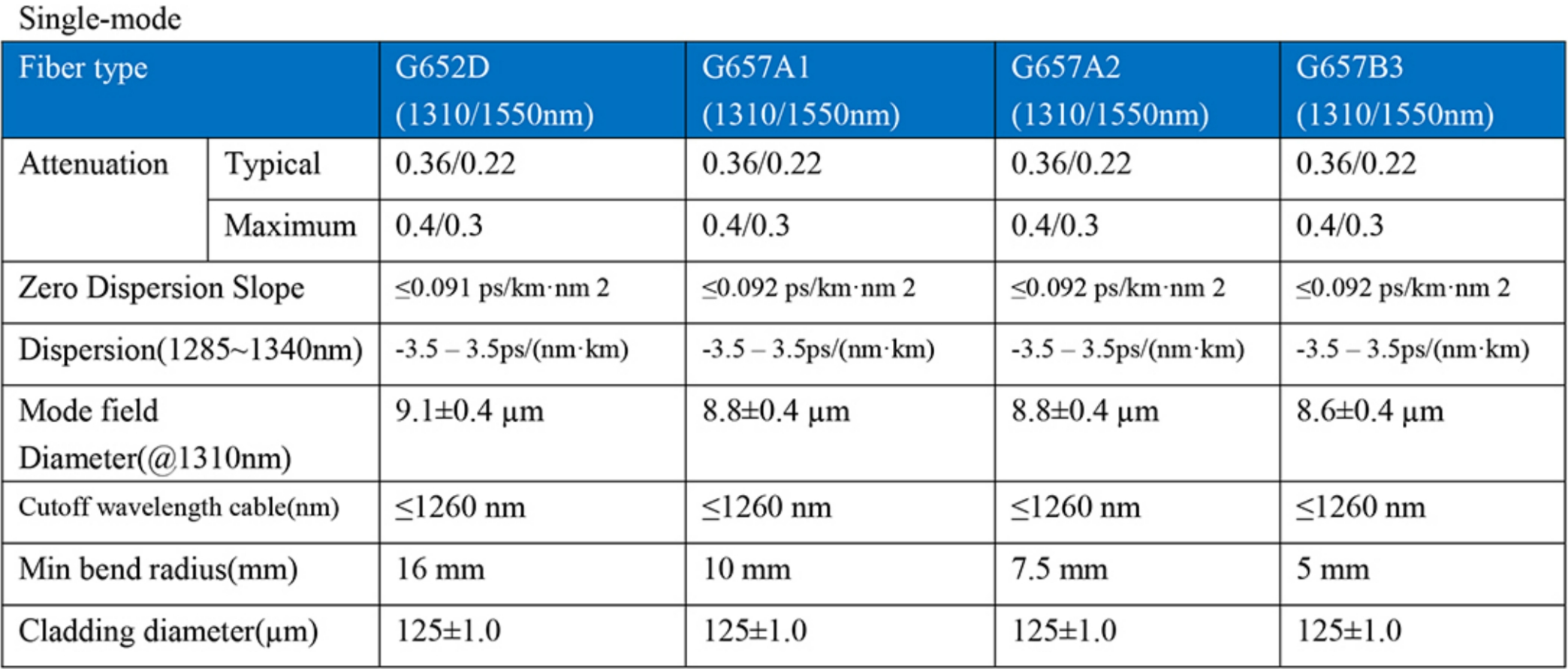

Optical parameters and properties
Application:
Directly connected from the backbone network to the equipment and optical terminal in the building, the patch cord can be applicable
for the pigtail of backbone network as well. Moreover, it can also be applicable for the direct cabling for indoor and outdoor walls, roofs,
mezzanines, pipes and communication equipment room, FTTH, the optical connection of ODF, indoor and outdoor horizontal cabling, vertical
cabling inside the building, LAN, and optical connection for the optical terminal equipment at multiple information points. In addition, it can
also be applicable for indoor large-capacity and multi-client overall laying, unit cabling and independent use as well. And it can also be
convenient to be connected with the terminal equipment, high-density cabling and occasions with small installation and curvature.
